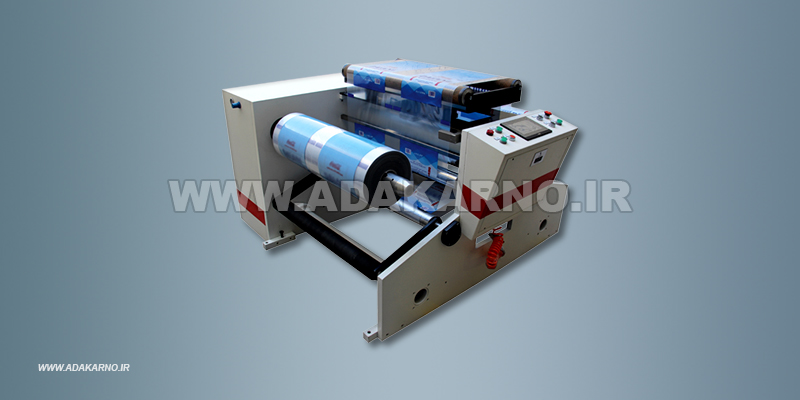

Heavy duty frame for re reeling with reverse running function and web guide control system in both sides.

• Reversible – over/under winding
• Cantilever air shaft and servo drive system
• PLC with touch screen HMI
• Automatic Edge correction system
• Automatic web tension control with load cell
• Fully integrated operator-machine interface system

Technical specifications
Speed	200-300 m/min
Web width	400-800 mm
Diameter of winders reels	500-800 mm
Reel weight	30-100 Kg
Winders core diameter	76/152 mm
