Compact and efficient solvent less laminator with servo type motors both on unwinders and rewinder. Web tension control via dancing rollers, load cells and servo type motors.
Coating unit consist fire rollers with 2 independent motor drives for metering roller , transfer roller and coating roller.
This driver concept permits consistent and accurate adhesive applications.
In our latest design coating unit consist 2 step motors for adjusting the gap between two metering rollers. the distance between the two metering rollers forms the adhesive metering gap.
|Web width||850-1350 mm|
|Diameter of winders reels||1000 mm|
|Reel weight||1000 Kg|
|Winders core diameter||76/152 mm|
|Web tension adjustable range||50-500 N|

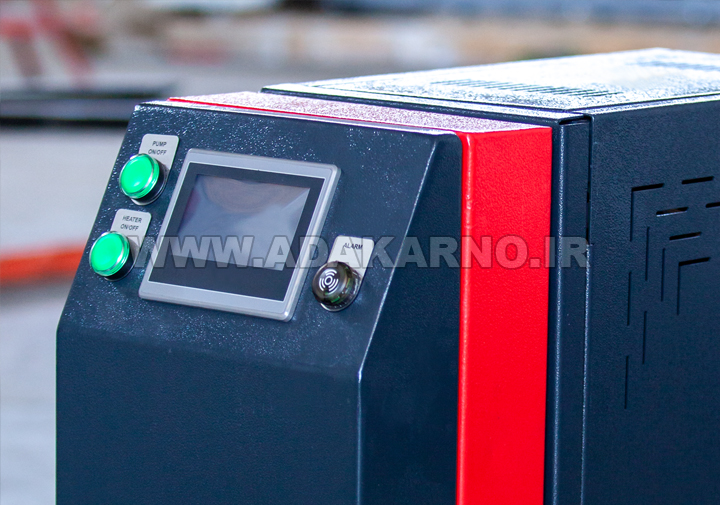

The SL2000 machines requires two water circulating temperature controller system.
