This new high performance slitter machine with partial lamination ability rewinder combines new technology , feature and design.
The machine is available in web width up to 1450 mm with 600 mm rewind diameter for 25 mm min. slit width at speed up to 400 m/min and laminate speed up to 250 m/min.

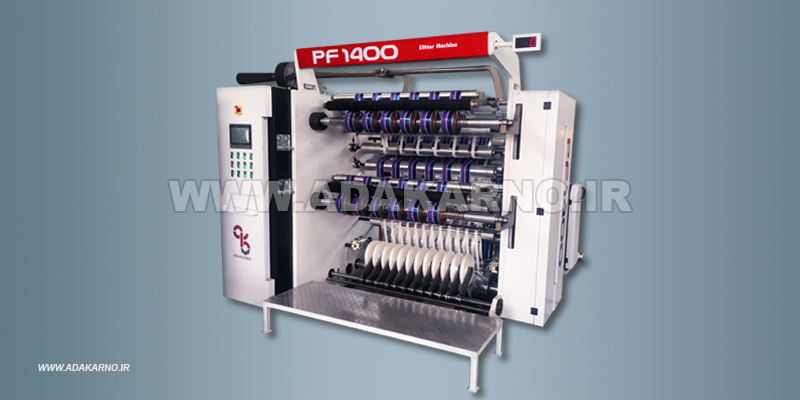

The PF1400 comes standard with razor blade configuration , two independent frictional shafts and relate servo type motors. Friction rings that are used on rewinders ensure the qualify production of slit roll when the film thickness is various. The machine has also a servo motor on infeed unit and pneumatic break on unwind unit with 3” and 6” air shaft and safety chucks.
Rotary blade, shaft less 3” and 6” mechanical pneumatic chucks, roll pick up for unwinder , BST digital web guidance, splice table , laser line for quick core positioning offered as option upon request.
|Slite Speed||400 m/min|
|Slite and Laminate Speed||250 m/min|
|Web width||1250 mm|
|Maximum unwinder diameter||1000 mm|
|Maximum rewinder diameter||600 mm|
|Min/Max slit widths||20/850 mm|
|Winders core diameter||76/152 mm|
